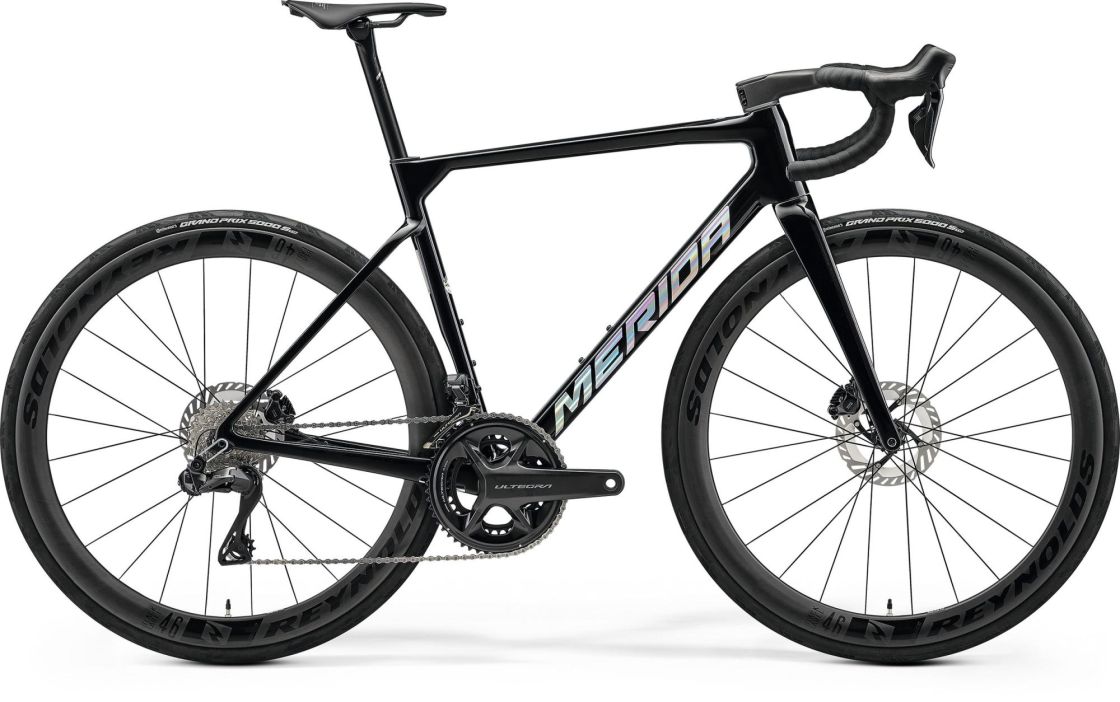

Merida Scultura 9000

frame SCULTURA CF5 V
material: carbon
700x30C max. wheelsize
100x12/ 142x12mm axle standard
Pressfit 86,5
frame size 3XS, XXS, XS, S, M, L, XL
color METALLIC BLACK (FLASH BCP)
fork MERIDA SCULTURA CF5 disc
material: carbon
700x30C max. wheelsize
brake front Shimano Ultegra
brake rear Shimano Ultegra
rotor front Shimano CL800
160mm
rotor rear Shimano CL800
160mm
headset MERIDA TEAM SL
VP-MRBHB (OP203 neck)
handlebar MERIDA TEAM SL 1P
material: carbon
380mm (3S-XXS-XS-S)
400mm (M-L)
420mm (XL)
handlebar stem MERIDA TEAM ONE-PIECE
material: carbon
incl. MERIDA SMART MOUNT
90 mm (3XS/XXS/XS), 100 mm (S), 110 mm (M/L), 120 mm (XL)
grip MERIDA ROAD EXPERT
derailleur (r) Shimano Ultegra Di2
derailleur (f) Shimano Ultegra Di2
seat post MERIDA TEAM SL II
27.2mm diameter
0mm setback
Carbon
saddle Prologo Nago R4 PAS
Nack
bottom bracket Shimano SM-BB71-41B
Pressfit 86.5
chain Shimano M6100-12
crank Shimano Ultegra
52-36 teeth
left arm 4IIII PM
160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
freewheel Shimano Ultegra R8101
11-30 teeth
12 speed
wheelset Reynolds BL 46 Expert DB, 100x12mm width front hub
142x12mm width rear hub
21mm inner width
46mm height
Centerlock
Shimano HG
material: carbon
Tubeless ready (tubeless tape and valves included)
tyre front Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready
tyre rear Continental Grand Prix 5000S TR
700x28C
fold
tubeless ready
axle rear MERIDA EXPERT SL
including removable lever
6/4mm allen key
approx. weight 7,1 kg
