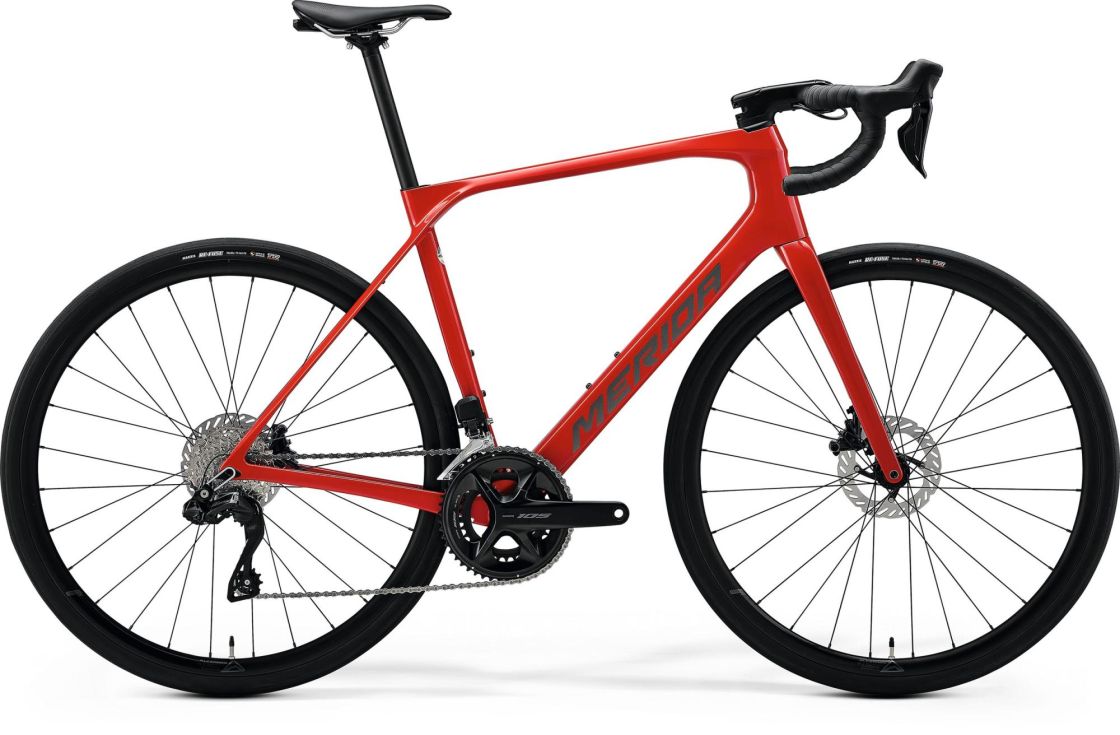

frame SCULTURA ENDURANCE CF3 II
material: carbon
700x35C max./ 700x32C (with fender) max. wheelsize
100x12/ 142x12mm axle standard
BB86 bottom bracket standard
frame size XXS, XS, S, M, L, XL
color DARK RACE RED (GUNMETAL GREY)
fork MERIDA SCULTURA ENDURANCE CF3 DISC
material: carbon
700x35C max. wheelsize
brake front Shimano 105
brake rear Shimano 105
rotor front Shimano CL700
160mm
rotor rear Shimano CL700
160mm
headset MERIDA TEAM SL
VP-MRBHB (SE-301 neck)
handlebar MERIDA EXPERT SL II
material: aluminium
380mm (XXS-XS-S), 400mm (M-L), 420mm (XL)
handlebar stem MERIDA EXPERT SL 2PII
material: aluminium
-9°° stem angle
incl. MERIDA SMART MOUNT
90 mm (XXS/XS/S), 100 mm (M), 110 mm (L/XL)
grip MERIDA ROAD EXPERT
derailleur (r) Shimano 105 Di2
derailleur (f) Shimano 105 Di2
seat post MERIDA EXPERT SL
27.2mm diameter
0mm setback
Carbon
saddle MERIDA EXPERT SL
6% recycled and 23% nature material
V-mount
incl. MERIDA minitool
bottom bracket Shimano SM-BB71-41B
Pressfit 86.5
chain Shimano M6100-12
crank Shimano 105 R7100
50-34 teeth
165mm-XXS/XS, 170mm S/M, 172,5mm L/XL
freewheel Shimano 105 R7101
11-34 teeth
12 speed
tyre front Maxxis RE-FUSE
700x32C
fold
tyre rear Maxxis RE-FUSE
700x32C
fold
axle front MERIDA EXPERT TR
axle rear MERIDA EXPERT SL
including removable lever
6/4mm allen key
approx. weight 9,2 kg
